High Bay for High Ceilings
Standard

High Bay for High Ceilings

ECONOMIC LED LINEAR HIGH BAY LUMINAIRE WITH UNIVERSAL VOLTAGE FOR 30' PLUS CEILINGS

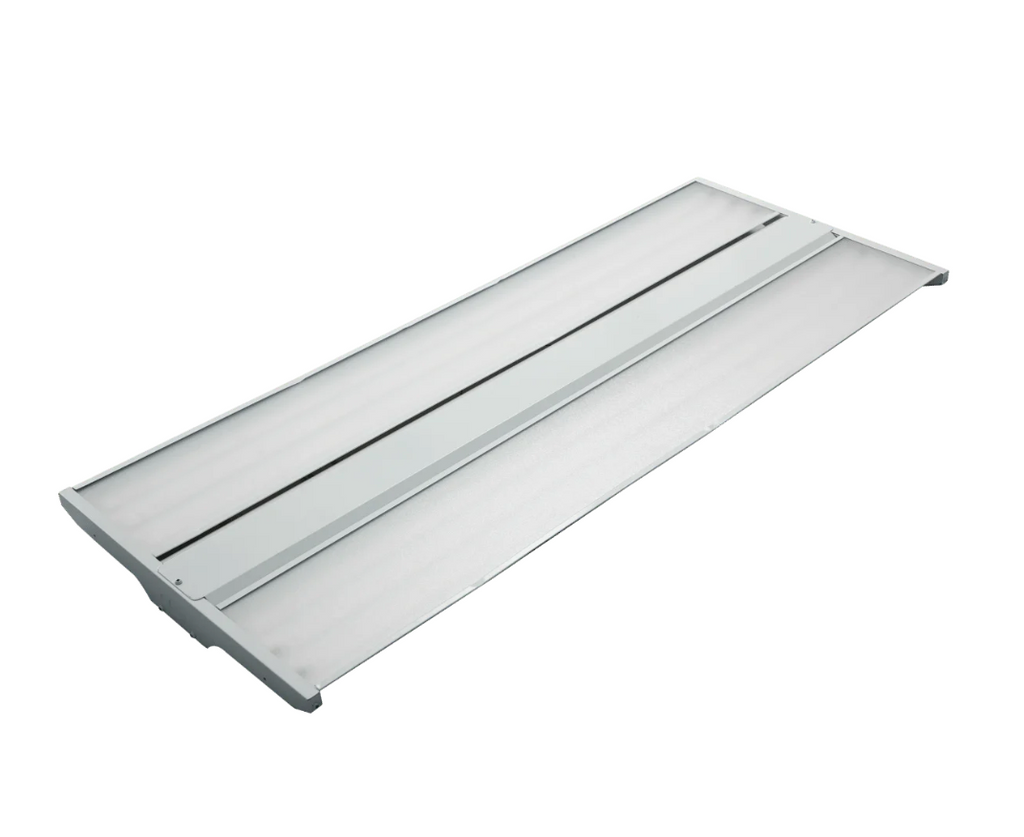

L1LEH ECONO LED LINEAR HIGH BAY LUMINAIRE Multi-Voltage (120-347 V) Stanpro’s economic L1LEH Linear High Bay with optional integrated sensor ($60 adder), is ideally suited for high ceiling warehouses as well as arenas where uniform and efficient lighting is required.

• Construction Physical Characteristics

− White powder coated 22 gauge slim, lightweight steel housing.

30,000 lumens!

− Well ventilated driver compartment for optimal thermal management. − Frosted PMMA lens over LEDs provides a diffused light distribution.

− 6' power cable standard in all configurations. Mounting − Surface, suspended or pendant (see accessories).

− Set of 2 V-Hooks and chains are provided with all configurations. Other mounting options are available, please consult accessory table. • Performance data

− Available in both 4 000 color temperatures

− 80+ CRI for true color accuracy

− Electrical ratings: 120-347 V

− Estimated life of over 54 000 hours to L70 − 0-10V dimming driver. Dimming cables not included with the fixture

− 2.0 kV surge protection

− Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F) − Ambient Temperature: -20°C to 50°C (-4°F to 122°F)

• Compliances − cULus listed for damp locations

− Meet requirements of ICES-005 (A), Issue 5 for class A products

− Complies with FCC Part 15, Class A, Sub Part B − UL1598, UL8750 − CSA 22.2 250.0, CSA 22.2 250.13
