• Delivered Lumens: 2000lm
• 3000K & 4000K
• CRI: 90
• Power: 10W, 20W
• Input: 24 VDC
• Rated Life: 50000 Hours
• Lightweight ultra-thin 1/8” profile
• May be field-cut vertically or horizontally, in unique shapes or around obstructions
• Powers easily by daisy chaining with integral push-in connectors or power from any square at soldering points provided
• Can be installed in either exposed or fully enclosed spaces
• Four I connectors and one 3ft feed wire included per sheet
• Transformer required
• Can be mounted on ceiling or wall in all orientations

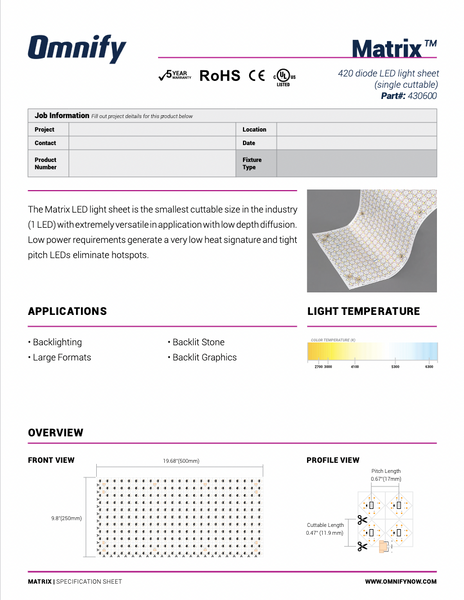

The Matrix LED light sheet is the smallest cuttable size in the industry
(1 LED) with extremely versatile in application with low depth diffusion.
Low power requirements generate a very low heat signature and tight
pitch LEDs eliminate hotspots.

1.3sqft/sheet

12w/sheet

24v Power

NOTE: Price is per sheet

Includes: connection wires and hardwire cables with 2-pin connector male plug and a plug-in adapter and bumper standoffs
