CC2

Cable connector to connect two 12 volt low-voltage cables in a split cable plan. Filled with moisture-resistant gel. Maximum load 50 Watts.

Splitter

The SPLITTER allows one light sensor to be connected to several transformers and to switch on the entire lighting plan at the same time. A SPLITTER can also be used to connect several lights to one Easy-Lock.

This small spotlight is delivered with a bracket and ground stake. This makes the fixture suitable for mounting on, for example, a fence or in an overhang, and to illuminate plants and shrubs in the border.

High Power 7 WATT LED

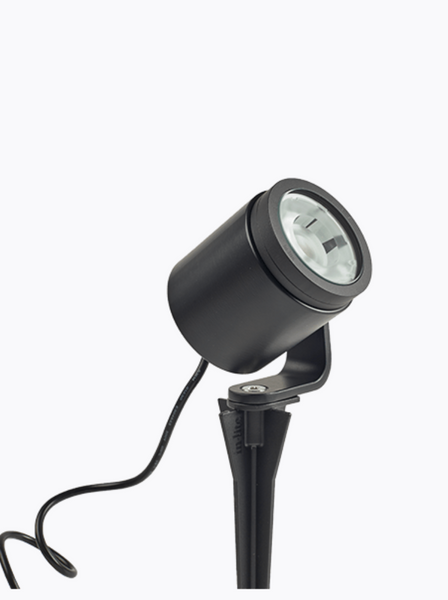

Spotlight in charcoal grey coated aluminium finished with a stylish anodised aluminium ring. Provides an atmospheric beam of light. Ground stake included, base plate available separately. The SCOPE and BIG SCOPE shine equally far. However, the beam of light of the BIG SCOPE is twice as wide.

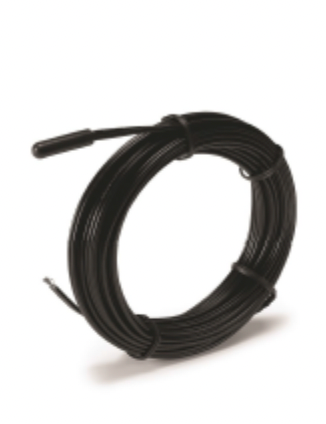

Extension cord type 18/2 length available 1M, 2M & 3 meters (10 ft). Used to increase the distance between the fixture and the low voltage cable. Can also be used to increase the distance between the light sensor and the transformer.

Philips Hadco FlexScape LED accent luminaire BL9 brings landscape lighting to the next level. Designed for optimal LED performance, it provides the lighting professional with countless low-voltage options. The luminaire’s rugged die-cast aluminum housing features low-energy outdoor lighting. Convenient beam adjustability makes for easy on-site lighting effect changes. The lockable aiming is well- suited for accenting objects, textures, walls, trees, etc. This all-weather luminaire comes with 100% molded silicone gaskets.

• Maximum installation value of 100 VA (100Watts)

• Fitted with a touchscreen, 2 cable outlets and a light sensor
• Expandable with motion detector

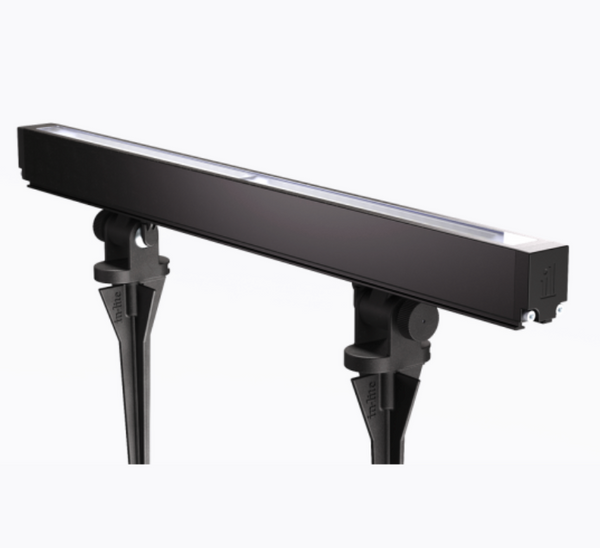

Our new exclusive EVO collection, which contains six fixtures, features the latest and very best LED's - a true evolution in light. This means the fixtures are very energy-efficient and help to create very natural colors in your garden. In addition, the fixtures feature a ‘diamond cut’ lens which ensures effective and uniform light distribution. Combine products from the EVO range and transform your outdoor space into somewhere you enjoy spending time during the day and in the evening.

Integrated: EVO GROUND 300 DARK

The exclusive EVO range will be available from the end of April 2018.

• Produces a focused light
• Designed for illuminating trees up to 8 meters
• Height adjustable with accessories

This subtle fixture with a diameter of 22 mm is fitted with a stainless steel ring. In the evening, it produces an attractive warm light that, thanks to the lens with honeycomb structure, does not blind. This makes this fixture suitable for stairs and terraces, for example. The HYVE 22 with stainless steel goes together well with the other fixtures in the HYVE line.

PRODUCT DETAILS

Big Flux

• Produces a strong and focused light
• Designed for illuminating tall elements up to 7½ meters
• Drive-over

Mini Wedge

• Produces a subtle and attractive downward light
• Designed for illuminating a low fence or wall
• Available in three sizes

Subtle round fixture finished with a wide stainless steel ring. The lens honeycomb structure creates warm atmospheric lightning.

12V- Low Voltage

1W LED

Stainless Steel

Remote access via Smart Hub 150

• With one press of a button via the app or a voice message, you can now easily switch on your outdoor lighting from anywhere in the world.
• Voice Control via Google Home, Apple Homekit or Amazon Alexa.
• SMART BRIDGE is fully automatic. Need an update? No problem. You can easily update the SMART HUB firmware through a fixed internet connection.

The ACE DOWN wall-mounted light fixture produces a targeted beam of light and can be mounted on a wall or fence. Since the LED light source is placed deep inside the fixture, the light is not blinding. The ACE DOWN is available in two colors: Rosé Silver and Dark Gray. 12V

• Produces a soft light that does not glare
• Designed for illuminating a walkway or deck
• Drive-over
• 22mm diameter

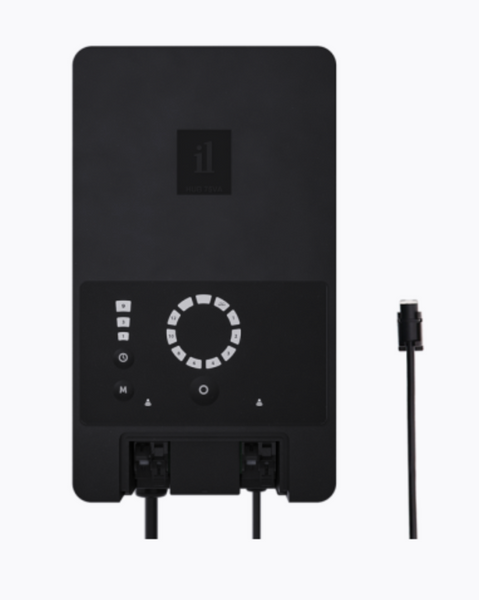

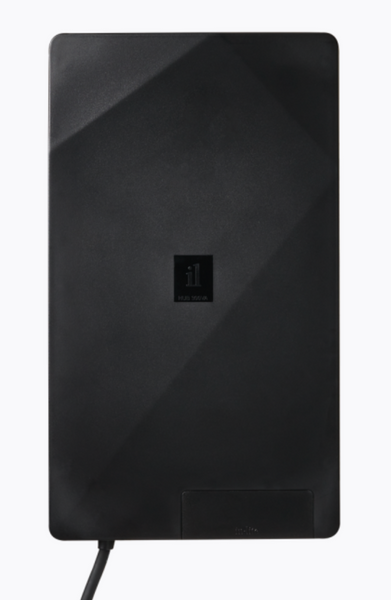

Introducing the latest and smartest landscape transformer from in-lite.

SMART HUB-150

Innovation is part of our DNA. With the SMART HUB-150, we’re introducing a revolutionary new way to control your

in-lite outdoor lighting using the in-lite app. Want to know how it works? Watch the video.

in-lite app

Key features:

150 Watts

3 Zones

Up to 250’ per zone

Combined the zones carries up to 150W, therefore Zone 1 can be 100 Watts, Zone 2 can be 20 Watts & Zone 3 would be 30 Watts.

App based

Bluetooth based with mesh network capability, ie linking 3 transformers on one app.

Create schedules

Astronomic time clock for accurate schedules and on/ off capabilities for your location.

The ACE UP-DOWN 100-230V wall-mounted fixture can only be connected to a 120V power supply. This makes it suitable for use on the outdoor wall of a home, garage or shed. The two LED light sources direct a light beam upwards and downwards. The ACE UP-DOWN 100-230V is available in two colors: Rosé Silver and Dark Gray.

PRODUCT DETAILS

Round wall-mounted fixture in warm silver-coated aluminum. Comes with two lenses: transparent and matte. For a focused or, indeed, dispersed Warm White light.

12V- Low Voltage

LED

This starter rough in kit includes (20) pre cut sleeves of 2 1/2" x 14" with shaved sleeve so no wider ring on the Hyve is required, meaning a sleeker look! It also includes (300') of 3/4” flexible core-line pending on availability, (500') of 12/2 Landscape Wire, a (1) 100W transformer, (40) 3/4” coreline connectors, (40) 3/4” coreline couplings, (2) roll of duct tape and (20) Hyve (ww) lights to test and rough in during install, with your option to add more lights!

Simply place pre cut sleeves for every light/HYVE product you plan on installing throughout your concrete area.

Next from your low voltage transformer run core-line to first sleeve  placed in light location, cut core-line and place under cut pipe location or cut out two 1” holes to place connectors and fasten coreline for a secure placement.

Next run new core-line from sleeve as per above and run to the next sleeve which is the next light location.  Continue this till you reach your final light location.

Once core-line runs are roughed in, now you can run your landscape wire.  Push wire in from transformer location and follow core-line.  Landscape wire is ran throughout each pipe location running continuously in every core-line to final light location.   Be sure to pull lots of extra wire at the end as in the next step we will go though the step of leaving extra wire (looped) in each sleeve.

Once wire is ran throughout, now go to each sleeve starting from the last and first and pull back extra wire so each pipe has at least 18" of looped wire inside so later on there is enough to connect the lights in every sleeve.

Once given enough slack of wire in each pipe, again 14" of looped wire suggested in each pipe.  Now you can fasten the sleeves to the rebar and place duct tape over and under the pipe to ensure no concrete is poured into the pipe.  Remember the lights and wire need to fit in the cut pipe locations so duct tape will ensure concrete does not enter.

Concrete is poured and dried, great now is the fun part!

Sleeves may be lower or higher then the concrete and thats okay.  If pipe is higher than the poured concrete simply peel back the top portion of the duct tape and cut back the sleeve so its flush with the concrete ensuring not to cut the wire!

If sleeve is lower, its okay the light (hyve) sits on the concrete so its ready for light install.

Connecting and installing the HYVE lights.  The kit comes with (20) HYVE (ww) light.

The HYVE light comes with a speciality connector, simply peel pack the duct tape as per above step if not done already, grab your slack of wire and connect the wire to the connector.  Once connected attached light to connector.

Final step, place small portion of silicon under ring and place light in sleeve, pushing in the wire, connector and light so it fits all in the pipe.

Power on transformer to test lights, if any lights are not on, check connection on wire for that light and ensure the connector was tightened and not loosened when pushing light in.

• At a height of 35 cm, the DISC LOW is perfect for creating ambiance in borders and for use as indication lighting along paths
• Made of aluminum with high-quality FCBV coating in the color Black
• Easy to install in soil, grass or gravel using a ground pin

DISC

• At a height of 60 cm, the DISC is perfect for creating ambiance in borders and for use as indication lighting along paths
• Made of aluminum with high-quality FCBV coating in the color Black
• Easy to install in soil, grass or gravel using a ground pin

• For easy placement of ground spots between paving and gravel
• Suitable for BIG FLUX series and LUNA
• Easy to assemble and disassemble

• Produces a wide, focused light at an angle
• Designed for illuminating yards, walls and espaliers
• Drive-over

• Produces a wide, attractive light
• Designed for illuminating a pergola or overhang
• Available in two sizes

• Produces a soft light that does not glare
• Designed for illuminating a walkway or deck
• Drive-over

Flexible accent light

Our small MINI SCOPE spotlight remains the most versatile spotlight in our range because, in addition to being used as a spotlight and wall light, there is now also a stand-mounted version available. The MINI SCOPE DUO includes 2 MINI SCOPE (2 x 2 watt) spotlights on a (separable) stand, making this fixture ideal for use, for example, in a border. The spotlights can be easily positioned and aimed from anywhere on the stand allowing this fixture to illuminate both high and low plants. A ground stake and several cable clamps to guide the cables from the spotlights are included.
