The sleek, modern design of the architectural
KOLIKA RING lends itself to the visual
expression of the overall lighting scheme and
helps create a narrative to the chosen space
with its aesthetic design. Perfect for a variety
of commercial applications, whether it be retail,
hospitality, museums, or office space.

Equipped with both 4 power and 4 CCT
selectable features, the KOLIKA RING can
adapt to the color temperature and lumen
output requirement for a wide range of
projects and applications. Whether bright or
subdued, different areas of a space can benefit
from different lighting moods. Specific color
temperatures can also bring out the best in
architectural materials, such as wall paper,
marble or wood. The KOLIKA RING will create
the perfect lighting environment.

Enjoy the flexibility of selecting the direct/
indirect light output to offer focus and help
draw attention in a particular direction, or
improve visual comfort without compromising
visibility. Choose from 4 integrated options to
compliment the desired lighting scheme and
create an ambiance that is beneficial to the
chosen space.

Instantly make design a reality with
KOLIKA RING as this product is available
in stock. Available in 2 finishes (black
and white), as well as 3 sizes (2’, 3’,
and 4’), this specification grade product
is a great solution for a quick project
turnaround.

Countless Lighting
Choices
• Independently select the color temperatures
for both the direct and indirect light. This
feature allows for greater creativity and
customization in lighting design. Designers
can adapt to various functions and aesthetics
without being limited to a single CCT for the
entire fixture.
• Choose amongst 4 power options that will
adapt to the lumen output requirement for a
wide range of projects and applications.
• Select the direct/indirect light output ratio
to tailor the light to the needs of the chosen
application. Being able to adjust the ratio of
the direct and indirect lighting allows to adapt
the luminaire to various environments and
events, from social gatherings to focused
work sessions.

KIT STANDARD SIZE - 16FT X 8FT

FOR LARGER SIZE WILL NEED TO BUY ANOTHER KIT.

FLX32 Watt

2700K

white

2400 lumens

40 degree beam

surface

mono point

7 day eta

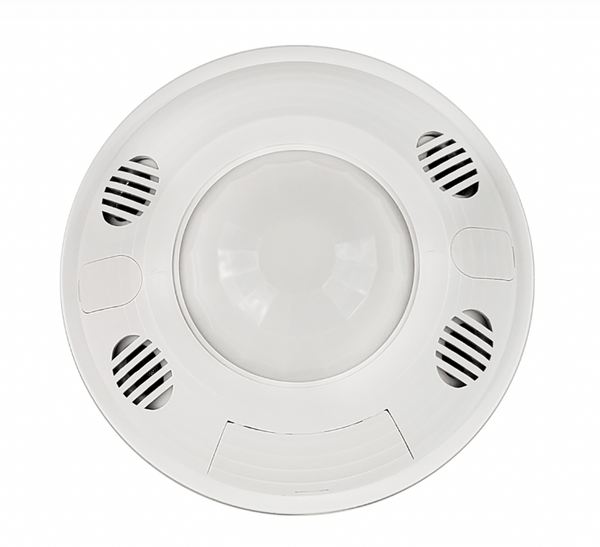

The ceiling motion sensors – line voltage series are occupancy and vacancy sensors.

This product line offers 3 models: 360° Passive Infrared (PIR) technology , Ultrasonic technology and Dual Tech that combine both PIR and Ultrasonic. The detection area is up to 1000 ft2 (93 m2) with a PIR sensor and up to 2000 ft2 (186m2) when Ultrasonic is present.

It is suited for use in business and office to detect occupancy and to control the light to save energy. Occupancy Mode and Vacancy Mode are selectable for the installer. The ambient light control system prevents the sensor from turning ON the light if the ambient light is sufficient.

BRAK-IT products are Canadian made from the highest quality and are compliant with C UL US.
They are also compatible with the existing fixtures on the market. For all your needs, it’s BRAK-IT you need.

Features:

• Easy to install
• Compatible with existing fixtures on the market
• Support up to 100 lbs
• BRAK-IT 185, 185C, 185P can support up to 200 lbs
• Quick installation
• Used for plumbing, ventilation and lighting applications
• BRAK-IT are Made in Canada

The new NWL wrap fixture from Signify.

Features that make this wrap different from other manufactures.

1 – extra wide body 7.01” – this will cover any existing fixture footprint without having to paint the surface.

2 – comes with Occ Sensor and a switch to turn it on or off.

3 – 120-347V

4- NWL 4' LED Wraparound, 4000lm, Color Selectable 3000K-3500K-4000K

IHB Series

A classic form redesigned in a modern modular form

The KOLIKA luminaires offer a sleek and lightweight design, making it the perfect choice for creating a modern atmosphere in any office, commercial or retail space. The fixtures are available in black and white with the versatility to change color temperature using a simple switch and corner connector accessories which simplify lighting set ups in a wide range of shapes and configurations.

Construction Housing:

The body is made of extruded aluminum Finishes Matte white and matte black Lens Opal acrylic

Color CCT Selectabale

Installation Suspended installation 10' suspended aviation cable, 10' power cord and one canopy are included

Row mounting A joiner accessory is sold separately and provides a continuous mount with seamless lighting.

Illuminated corner connectors Ready-to install L, T, X, Y and 120-degree corner connectors simplifies installation for various design patterns.

Specifications Driver 120-277 V electronic driver with 0-10 V dimming standard.

Lumens 25% of lumens delivered uplight 75% of lumens delivered downlight

Beam angle − 2': V: 88°/ H: 96° − 4': V: 108°/ H: 105° − 8': V: 108°/ H: 105° Ambient temperature − -20°C to 40°C / -4°F to 104°F

Compliances − DLC Listed −cULus − ICES-005 for Class A products

Suitable for damp locations

The LED SWIVEL Choice downlight has been specially designed to highlight specific zones by offering 360° rotation with a 90° tilt. Featuring great performance and quality with a CRI of 90+, this 4″ directional downlight is easy to install in any type of ceiling. The LED SWIVEL Choice downlight is a cost-effective solution for all residential applications.

WHITE

CCT Select

WHILE SUPPLIES LAST

ECONOMIC LED LINEAR HIGH BAY LUMINAIRE WITH UNIVERSAL VOLTAGE FOR 30' PLUS CEILINGS

L1LEH ECONO LED LINEAR HIGH BAY LUMINAIRE Multi-Voltage (120-347 V) Stanpro’s economic L1LEH Linear High Bay with optional integrated sensor ($60 adder), is ideally suited for high ceiling warehouses as well as arenas where uniform and efficient lighting is required.

• Construction Physical Characteristics

− White powder coated 22 gauge slim, lightweight steel housing.

30,000 lumens!

− Well ventilated driver compartment for optimal thermal management. − Frosted PMMA lens over LEDs provides a diffused light distribution.

− 6' power cable standard in all configurations. Mounting − Surface, suspended or pendant (see accessories).

− Set of 2 V-Hooks and chains are provided with all configurations. Other mounting options are available, please consult accessory table. • Performance data

− Available in both 4 000 color temperatures

− 80+ CRI for true color accuracy

− Electrical ratings: 120-347 V

− Estimated life of over 54 000 hours to L70 − 0-10V dimming driver. Dimming cables not included with the fixture

− 2.0 kV surge protection

− Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F) − Ambient Temperature: -20°C to 50°C (-4°F to 122°F)

• Compliances − cULus listed for damp locations

− Meet requirements of ICES-005 (A), Issue 5 for class A products

− Complies with FCC Part 15, Class A, Sub Part B − UL1598, UL8750 − CSA 22.2 250.0, CSA 22.2 250.13

LEDP-22-WH-OTW42

The LED panel lights are designed to provide an optimal and modern alternative from traditional offers with app based features. Elegantly designed for uniform light across the entire panel with low glare and shadows. Suitable for use in forward thinking commercial and residential applications.

•

  White Tunable 22K-65K

CIRCADIAN RHYTHM

Feel and sleep better with this default well-being option, which slowly transitions lighting from morning to night.

SET THE SCENE

Create the perfect room atmosphere. Take a picture and bring the scene back again with your voice or clicking a snapshot.

SCHEDULES

Each room has a recommended set of schedules to help automate your lighting needs.

VACATION MODE

Relax on vacation, knowing that your home is safe with automated schedules to simulate presence in the morning and evening while you’re not there.

SECURITY

Rest assured that your information is secure, as you create an account by linking your Google or Facebook.

NO HUB REQUIRED

No hub required - Connect to a 2.4 GHz network.

COMPATIBILITY

Built by lighting people to work with our lights, we guarantee these controls will work flawlessly with Liteline products.

SLIM KOLIKA 2" - L1KSL

3 CCT AND 3 POWER SELECTABLE LED ARCHITECTURAL LINEAR SUSPENDED WITH DIRECT/INDIRECT LIGHT RATIO SELECTION

The SLIM KOLIKA luminaires combine sleek, minimalist design with exceptional versatility, making an ideal choice for modern office, retail, and commercial environments. Available in classic black or white finishes, these fixtures feature adjustable wattage and color temperature, along with a selectable up/down light distribution, allowing for tailored lighting solutions to suit any space.

With a minimalist look in either white or black finish, our Multi-Mount EDGELIT is a versatile solution that blends modern simplicity with well thought-out features. Our luminaire offers the advantage of an integrated 3 color temperature selection as well as different mounting options. Enjoy this luminaire flush mounted (standard) or, semi-flush and pendant when used with our compatible stem kit. Our Multi-Mount EDGELIT is an ideal lighting solution for both commercial and decorative residential applications such as kitchens, living rooms, offices and more!

INCLUDES 4.4FT STEM SUSP. KIT FOR CLEG16

Available in white and Black

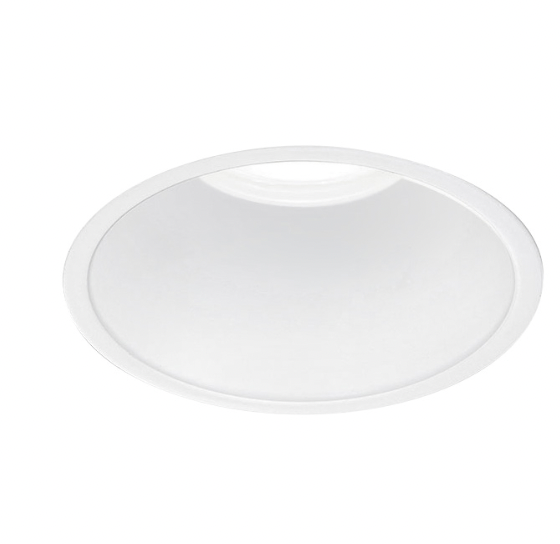

Core value LED downlight for new construction and remodel applications that installs in many existing residential and commercial applications.
