Discover the power of smart lighting

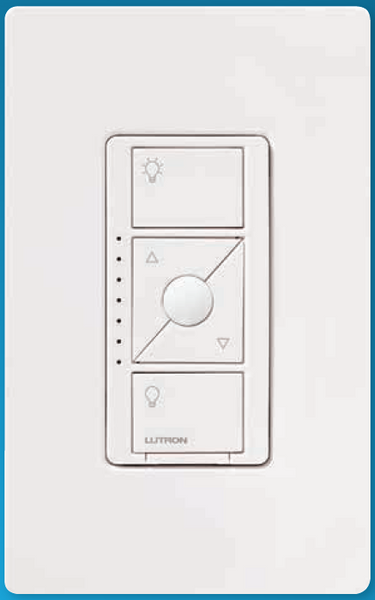

Dimmer

• Doesn’t require a neutral wire — ideal for retrofit or new construction

• No polarity for line or load wiring — mistake-proof wiring

• Works with compatible dimmable LEDs (up to 150 W), and incandescent and halogen bulbs (up to 600 W)

• Use Pico remotes for additional dimmers in multi-location dimming applications

Dimmer ELV+

• Works with all load types

• Favorite button for preset level on dimmer (matches Pico)

• 500 W ELV/ INC / HAL

• 400 W MLV

• 250 W LED

• Neutral wire required

• 10 W minimum load

• Use Pico remotes for additional dimmers in multi-location dimming applications

Neutral switch

• Neutral wire required — provides higher capacity and 10 W minimum load or one LED bulb

• Use Pico remotes or existing toggle switches in multi-location switching applications

Switch

• Doesn’t require a neutral wire

• Minimum load cap included (for switching LED, CFL, and ELV loads)

• Use Pico remotes or existing toggle switches in multi-location switching applications

Lamp dimmer

• Features two receptacles for simultaneous control of two lamps

• Simply plugs into a standard wall receptacle

• Works with dimmable LEDs (up to 100 W)

• Also works with halogen and incandescent bulbs (up to 300 W)

Pico remote control

• Provides convenient remote control

• Add a light switch without having to wire anything

• Battery powered — features a 10-year battery life

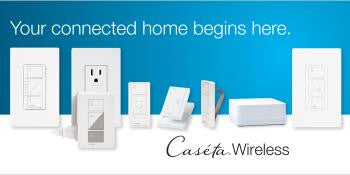

• Works with Caséta Wireless dimmers, switches, and wireless shades

Pico remote control for audio

• Controls any model Sonos speaker(s) from anywhere around your home

• Play/pause, skip tracks, raise/lower volume, and select your favorite playlist or station

• Smart Bridge or Smart Bridge PRO required

• 10-year battery life

Smart Bridge

• Also compatible with Lutron Triathlon battery-powered shades and select styles of

Sivoia QS Wireless shades

• Adds integration with third-party A/V remote controls and security systems

Lutron App

• Control individual lights, shades, and thermostats — even when you’re away from home

• Add and schedule scenes to adjust lights and shades automatically

• Receive notifications on your smart device if you’ve left lights on when you leave home

• Tell Siri to turn lights off and close your shades just before bed, or dim the lights for movie time

• Use the geofencing feature to automatically turn lights on as you arrive home/turn them off as you leave

• Create a lived-in look with the “Smart Away” feature, which allows you to pick several lights that will

randomly turn on/off in the evenings when you’re away.

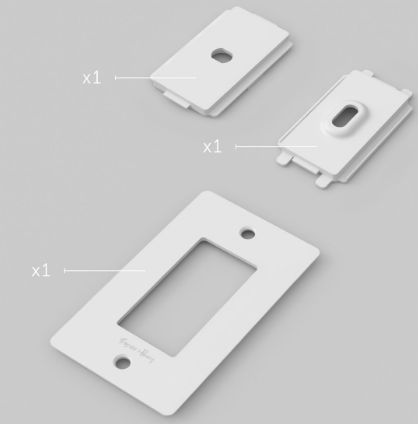

• For switch plates
• Durable plastic construction
• For use with decorator-style dimmers, switches and accessories
• Clean appearance with no visible fasteners
• Upgrade your room's look in a matter of minutes

TM811WCC - 15A SW & SW Dcor Combo SW Decorator; Dual 120/125 Vac 15 Ampere Single Pole Switch

TM818WCC - 15A SW & RCPT Dcor Combo SW Decorator; 120/125 Vac 15 Ampere Single Pole Switch; Nema 5-15R 120/125 Vac 15 Ampere With Grounding Straight Blade Receptacle

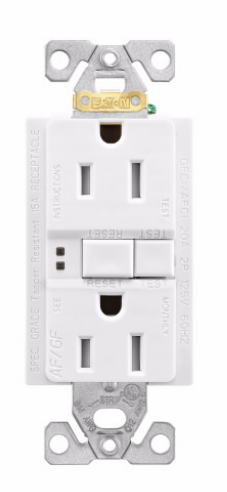

TR1595WH - Ground Fault Decorator Tamper-Resistant Receptacle.  15 amp, 125 volt, White.  Self Grounding. (Sold Individually)

TR2094WH - Ground Fault Decorator Tamper-Resistant Receptacle.  20 amp, 125 volt, White.  Self Grounding. (Sold Individually)

885TRW - Decorator Tamper-Resistant Receptacle.  15 amp, 125 volt, White.  Self Grounding. (Sold in 10 Pack Kits)

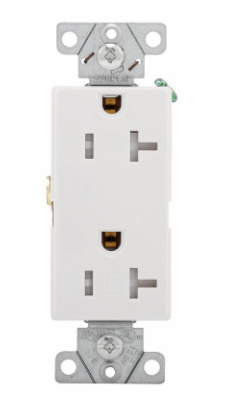

TR26262WH - Decorator Tamper-Resistant Receptacle.  20 amp, 125 volt, White.  Self Grounding. (Sold Individually)

TM870WH - Single Pole, Self-Grounding Decorator Switch, 15 amps, 120/277 volts, White. (Sold in 10 pack kits)

TM873WH - Three Way, Self-Grounding Decorator Switch, 15 amps, 120/277 volts, White. (Sold in 10 pack kits)

TM874WH - Four Way, Self-Grounding Decorator Switch, 15 amps, 120/277 volts, White. (Sold individually)

TM870WH - Single Pole, Self-Grounding Decorator Switch, 15 amps, 120/277 volts, White.

TM873WH - Three Way, Self-Grounding Decorator Switch, 15 amps, 120/277 volts, White.

TM874WH - Four Way, Self-Grounding Decorator Switch, 15 amps, 120/277 volts, White.

White H4FBL3PW

A smarter system with an easy-to-use app interface.

Comprised of high-performing subsystems, Intuity offers whole-house control of a home’s entertainment, security, comfort, and convenience, through both Legrand solutions and select third-party components – including multi-room audio, RF lighting control, shade control, security, thermostat, video door entry, camera monitoring, whole-house intercom and door locks.

Keep a watchful eye on your home with Legrand's CM7020 Dome Camera. It delivers full 1080p HD and has professional-grade night vision. The durable dome housing is vandal and weather resistant and the varifocal lens allows for motorized remote zooming. View live feed and receive email alerts with the Legrand Camera app for iOS and Android devices.

• View live feed and receive email alerts with the Legrand Camera app for iOS and Android devices.
• 4 MP image supports 16x9 wide frame with full 1080P HD resolution.
• Motorized varifocal lens for flexible remote zooming without loss of resolution.
• Vandal and weather resistant dome camera body for indoor and outdoor use.
• Professional-grade night vision allows users to see up to 50 feet clearly in near total darkness.
• Easily install over a single-gang electrical box.
• Powered by a single PoE cable.
• Support for 32GB MicroSD storage for basic recording and extended recording with Legrand Network Video Recorder.
• Compatible with Intuity Home Automation

Combining today's top technologies for entertainment, security, comfort, and convenience, Intuity integrates Legrand subsystems and select third-party devices into a single, easy-to-use app interface for superior home control. This Intuity Kit (HA7424) starts a home automation system by integrating Legrand RF Lighting Control and third-party Z-Wave devices

Kit Includes:

42" Enclosure x 1

Module Mounting Brackets x 2

Power Strip x 2

Power Kit Surge x 1

Intuity Kit with Z-Wave & RFLC Bridge for 3rd party integration  x 1

Power Supply Bracket  x 1

Intuity Command Center with Audio Version x 2 (white) with ipad mini stations

IP Cameras x 6

Thermostat WIFI9000 x 1

8P Gigabit Swtich x 1

Power Supply x 1

Wifi booster x 1

Selective call module x 1

Video Door Internet Kit  (NVR 8 channel) x 1

Brushed Stainless Video Door  x 1

Assembly back box x 1

Cat 5e jumper x 8

Digital module x 1

Power Supply x 1

Digital Audio Module x 1

Digital Audio Global Source x 1

Digital Audio Keypad x 1

Nuvo series 2 x 2 (pairs)

Rough In Speaker Brackets x (2 pairs)

Outdoor Speakers 3000 Series x 1 (pair)

* 3rd party commission upon install and cat 5 termination by an authorized installer is highly recommended and activates 3 year warranty versus 1 year parts only warranty.

Maestro occupancy/vacancy sensors automatically turn lights on when you enter a space and off when you leave, making them a convenient way to save energy in a home or commercial space. They’re ideal for rooms where lights are accidentally left on, such as an office, or rooms that you often enter with your hands full, such as a laundry room or supply closet.

Round Smart Thermostat - Second Generation (RCH9310WF)

• Location based temperature control
• Smart alerts - push notifications remind you of filter changes and warn of extreme indoor temperatures
• Intelligent comfort control considers both humidity and temperature to maintain your comfort, so 72° always feels like 72°. view and adjust the humidity levels in your home
• Auto changeover allows the thermostat to automatically select heating or cooling depending on the indoor temperature
• Indoor air quality lyric can control an indoor air quality accessory, such as a whole-home humidifier, dehumidifier or ventilators
