DELTA is an aluminum designer track fixture with up to 12 watt LED module.
It provides directional light source for specific aiming and assures a secure
lock on the angle position. Includes a CCT selectable switch

Body
Constructed of aluminum, the body features an aesthetically pleasing
smooth cylindrical shape. Includes a CCT selectable switch (2700K, 3000K,
3500K, 4000K, 5000K).
Beam Spread
The fixture is avalible with 38° beam spread for optimal light
distribution.
Dimming
The track fixture is 100~10% dimmable when used with TRIAC/ELV
dimming controls
Adjustability
Adjustable up to 90° tilt and 358° rotation to allow for spotlight into
multiple directions.
LED Characteristics
Available in 12 Watt LED engine maintains uniform intensity with a typical
luminous flux up to 1010 lumens, with up to 90 CRI.
Compatibility
Fixture is provided with a A-style/ J Style Fittings.

The Color Tape Kit includes Tape at selected length, LED driver, OnCloud Adapter, low-voltage powerfeed, and extrusion (optional). This LED tape provides ample illumination for residential, retail, and commercial general illumination. Suitable for dry and damp locations.  Wiz APP BASED control.  Wifi 6 recommended 2.4G network (Asus router suggested sold separately)

2 Kits:

10Meter

or

5Meter

Both Include

Tape RGBTW

96W Driver

4 Connectors

10' of 6 wire low voltage wire

The Eco series is a 24V dimmable electronic LED hardwire box. All encased in a coated aluminum box that includes 6 knockouts to enable easy installation.

15W FLEX series is a high performance LED luminaire with powerful output of 1480 lumens, 95 CRI and smooth sharp cylindrical body with no visible heat sink. Lower energy consumption with crisp, precise CCT, beam control with excellent CRI for various lighting applications, from residential to retail lighting.

Surface Mount Monopoint.

White

3000K

FLX32 Watt

2700K

white

2400 lumens

40 degree beam

surface

mono point

7 day eta

LEDP-22-WH-OTW42

The LED panel lights are designed to provide an optimal and modern alternative from traditional offers with app based features. Elegantly designed for uniform light across the entire panel with low glare and shadows. Suitable for use in forward thinking commercial and residential applications.

•

  White Tunable 22K-65K

CIRCADIAN RHYTHM

Feel and sleep better with this default well-being option, which slowly transitions lighting from morning to night.

SET THE SCENE

Create the perfect room atmosphere. Take a picture and bring the scene back again with your voice or clicking a snapshot.

SCHEDULES

Each room has a recommended set of schedules to help automate your lighting needs.

VACATION MODE

Relax on vacation, knowing that your home is safe with automated schedules to simulate presence in the morning and evening while you’re not there.

SECURITY

Rest assured that your information is secure, as you create an account by linking your Google or Facebook.

NO HUB REQUIRED

No hub required - Connect to a 2.4 GHz network.

COMPATIBILITY

Built by lighting people to work with our lights, we guarantee these controls will work flawlessly with Liteline products.

The Frame has changed the shape of standard panel lighting and is not all aesthetics. Imagine, high lumen output and more flexibility without the footprint. Available in 1x1, 1x2, 1x4, 2x2, and 2x4 size options, Frame fits perfectly into a T-bar ceiling with the acoustic tile on top, no trimming needed!

Included lay-in clips make for easy T-bar installation.

Selectable Kelvin 3000K-3500K-4000K

120V-347V

Now Available with Tunable White Option for the ultimate in healthy lighting!  All via the WIZ app.

CIRCADIAN RHYTHM

Slowly transitions lighting from morning to afternoon and back to night.

KL-LINE10-BK

4000K Cool

LED Fluobar light is a economical integrated LED strip for undercabinet lighting.

120V hardwire box and cord required for every power connection point in addition to the strips.

Tape

LED-TP1-12 is an indoor 12" (305mm) LED tape light. It provides ample illumination for effective residential, retail and light commercial displays. LED-TP1-12 is ideal for decoration of ceilings, wall or contour marking, backlit signs, under-cabinet, in-cabinet, toe kicks, and task lighting. It can be linked for continuous uninterrupted lighting. For indoor use only (dry location).  Low wattage ensure long lasting stick.

Low Voltage Splice Kit

LED-TP-BL-EL Flexible LED tape extension leads, for use with single colour LED indoor tape light, 24V connecting tape to low voltage wire for multiple new connection points.

40W Driver provides up to 30' runs (requires MAPRO non wifi or ELV+ caseta wifi dimmer options)

96W Driver provides up to 30' x 2 parallel runs (requires RRDF6AN dimmer)

The Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24 V- constant voltage loads. This driver provides smooth and continuous dimming down to 0.1% low-end. It is ideal for use with strip lighting in applications such as coves, under or over cabinet lighting and pathway lighting. The driver is UL® Listed with an integrated wiring compartment and can be mounted up to 150 ft (45 m) away from the load.

EXTRUSION

65867 series EXTRUSION / 210 / RECESSED /8' /ALUM /STD 66343 with frosted lens

210 Recessed

Silver 8' length

1 1/32 width

7/16 inches height

Compatible Dimmers

Radio Ra

3-Wire Fluorescent/LED (120–277 V~) RRD-F6AN-DV-WH 6 A Neutral Wire Dimmer for 96W Driver

Caseta ELV+ PD5NE

• Works with Alexa, Google Assistant, and more (Smart Bridge required)

• Compatible with dimmable LED, ELV, MLV, incandescent and halogen bulbs

• Easily replaces existing switch and installs in as little as 15 minutes (neutral wire is required) works on 40W Driver

Maestro PRO LED+

Dimmer Phase-selectable dimmer for LED, ELV, MLV and incandescent lamp loads.

Product Details

Product Details

Product Details

27K-50K

Selectable

Features

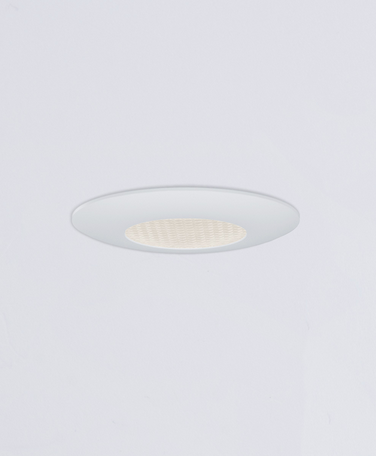

LUNA
3.5" LUNA LED 2-Light Linear Gimbal Color
Selectable Recessed Fixture
Recessed Downlighting

Body
Durable airtight aluminum body with
adjustable gimbal. Includes anodized
blue heat sink to provide maximum
airflow for the LED light source.

LED Characteristics
This general application light fixture
features 18 watt LED module that
maintains uniform intensity. with a typical CRI of
90. On-fixture color selectable switch
allows switching between 2700 K,
3000 K, 3500 K, 4000 K and 5000 K
color temperatures.

Dimming
100%-10% dimming capability. This
fixture is compatible with industry
standard forward-phase / reverse-phase
and TRIAC/ELV dimmers (contact
factory for list of compatible dimmers).

Beam Spread
The fixture lens provides 38° beam
spread.

Mounting
Includes four spring loaded clips to
attached to any ceiling material.

LED Driver
Extruded aluminum hardwire box with
two 210mA dimmable class II electronic
LED drivers with 100-135V AC input.
Includes an 18" FT6 rated cable with
DC 2.1 connector between driver and
fixture approved for use in plenums and
suspended ceilings.

“Quick connect” push-in terminals for
fast and easy wiring.

Operating Temperature
-20°C~40°C (-4°F~104°F)

Environment
• Suitable for wet locations.
• Approved for direct contact with
insulation.
• Airtight
