KPRL4B6XS CON KIT FDPBS364J SINGLE SW PR

Residential Home Car Charging Solution
See below and attached

• DIVVEE monitors the power that is supplied to the stove and when it senses that the stove has been turned on, it shuts off the charger so to not overload the shared circuit breaker for the devices. Once the range is turned off, DIVVEE turns the charger circuit on again and allows the vehicle to continue charging

Loadshare Divvie

Major Benefits
-Uses your existing Stove breaker
-No Panel upgrade
-Just mount and wire
-Turns EV Charger on when your stove is off
- Meets all Canadian Electrical Codes

40 Amps Current Rating and 60 Amp Available!

240/-208V

NEMA 1 (indoor)

12" x 12" x 4" Box Size

Single Phase AC

7802MD

Manual Control Switch, 2pole, 1Phase, 30amp 600volt.

7802MD

Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.

7812PMD

Double Pole, Single Phase AC Manual Motor Controller, suitable as Motor Disconnect - 10KA @ 600VAC, 30A max. Class J Fuse.

7813PMD

AC Manual Motor Controller, suitable as Motor Disconnect - 10KA @ 600VAC, 30A max. Class J Fuse.

7833MD

Three pole, Three Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.

7863R

Eaton’s Pow-R-Line panelboards (1a & 2a) provide ideal solutions for lighting and appliance branch circuit protection. Standard designs offer a wide selection and allow for easy installation. Increased series ratings provide higher short circuit ratings using standard bolt-on or plug-on breakers. UL listed kits can provide field conversion from main lugs to main circuit breaker.

(BREAKERS NOT INCLUDED)

Eaton’s Pow-R-Line panelboards (2a) provide ideal solutions for lighting and appliance branch circuit protection. Standard designs offer a wide selection and allow for easy installation. Increased series ratings provide higher short circuit ratings using standard bolt-on or plug-on breakers. UL listed kits can provide field conversion from main lugs to main circuit breaker.

(BREAKERS NOT INCLUDED)

Eaton’s Pow-R-Line panelboards (1a & 2a) provide ideal solutions for lighting and appliance branch circuit protection. Standard designs offer a wide selection and allow for easy installation. Increased series ratings provide higher short circuit ratings using standard bolt-on or plug-on breakers. UL listed kits can provide field conversion from main lugs to main circuit breaker.

(BREAKERS NOT INCLUDED)

Eaton’s Pow-R-Line panelboards provide ideal solutions for lighting and appliance branch circuit protection. Standard designs offer a wide selection and allow for easy installation. Increased series ratings provide higher short circuit ratings using standard bolt-on or plug-on breakers. UL listed kits can provide field conversion from main lugs to main circuit breaker.

(BREAKERS NOT INCLUDED)

Eaton BR Thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker,

10 kAIC, Single-pole, 120/240V, BR, #14-4 AWG Cu/Al, BR, Type BR Loadcenters

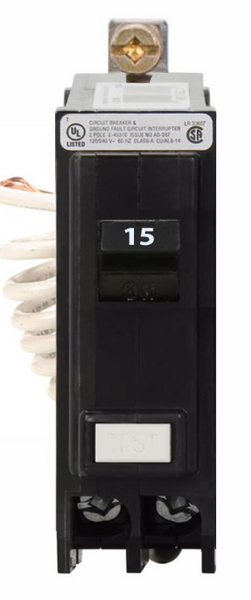

Eaton QB GFCI circuit breaker,Bolt-on equipment protection,15A,10 kAIC,Single-pole,120/240V,Non-Interchangeable,30 mA Trip sensitivity,Bolt-on,#14-4 AWG,QB

Limited Availability

QBH1015GF

non refundable

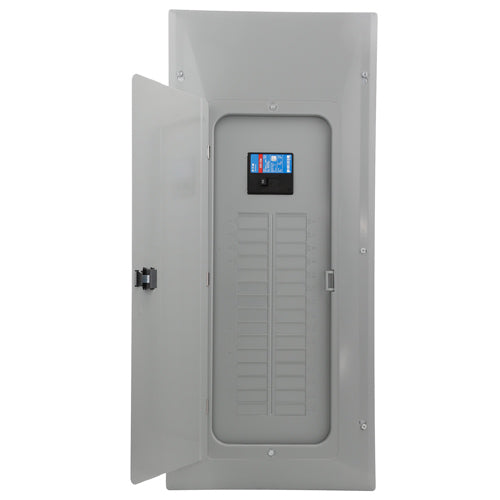

The main function of a loadcenter (i.e., breaker box, fuse box) is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Eaton designs and manufactures loadcenters and circuit breakers that provide reliable power breaking and circuit protection.

Three-wire 120/240 Vac combination service entrance Type 3R (outdoor/raintight)
