CPM1540WL 150 AMP Panel
$313.00 $399.00
40-80 circuit
150 AMP
Push On BR Style

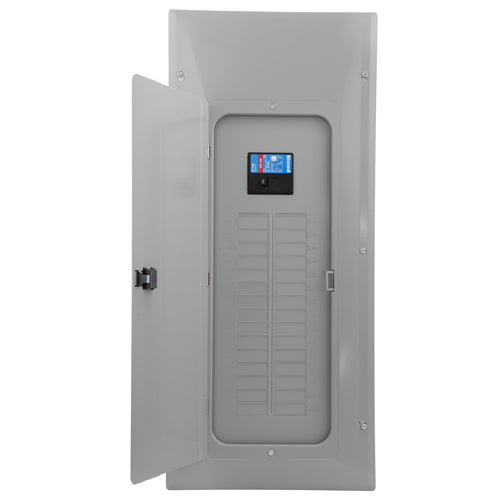

Type CPM/CPL plug-in loadcentres Product description Loadcentres feature factory installed main lugs or main breakers. The BR interiors are manufactured of formed, plated aluminum. Eaton also supplies a full line of Eaton brand BR, DNPL, GFCB and GFEP type branch circuit breakers and accessories for these loadcentres. Product application Designed for the protection and distribution of single and multidwelling residential and light commercial loads to 120/240 volts AC, such as lighting, heating, appliance and small motor branch circuits. All main breaker combination loadcentres are CSAT listed for use as service entrance equipment. Ratings Single-phase, three-wire, 120/240 volts AC and three-phase, four-wire, 120/208 volts AC. Mains through 400 A. Available with up to 84 branch circuits. Main breakers on 150 and 200 A panels are rated at 25,000 AIC. Metal enclosure specifications Enclosures are made of 16 gauge sheet steel, either galvanized or epoxy painted. These coatings provide superior corrosion protection. All trims used on BR loadcentres are chromate sealed and finished with an electro-disposition epoxy paint in grey (ANSI-61) or white, which exceeds requirements for outdoor and indoor applications. A combination surface/flush cover with integral door is supplied with indoor loadcentres rated from 100 through 400 A. All plug-in loadcentres are CSA listed to file LL98266. CSA certified to C22.2 No.29. Warranty 10 year limited.
