Hydel

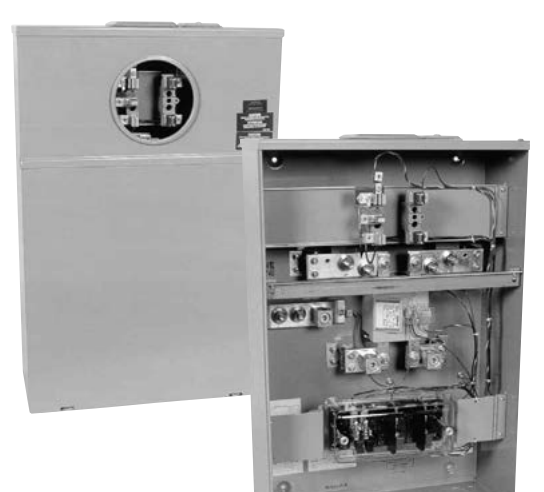

CT4 400 AMP METER SOCKET 120/240 VOLT, Single Phase
• Overhead/Underground • Tunnel lug kit supplied for overhead service LK250, LK500, LK750 upon request • Line side - double 1/2" studs to accommodate compression lugs for underground service (1 x 500 MCM or 2 x 250 MCM) Load side - one #4 - 600 MCM or two 1/0 - 250 MCM tunnel type connectors Neutral - 1/2" studs to accept two 500 MCM compression type lugs - lugs, one#4 - 600 MCM or two 1/0 - 250 MCM • Dimensions, 30" x 20" x 8" or 36" x 20" x 8" Weight, 75 lbs. or 80 lbs. Ko's 3" - 31/2", 4" • CSA approved
JS4A
TCC5
TSU
