Kohler

100A Service Entrance Rated Automatic Transfer Switch Quick shop

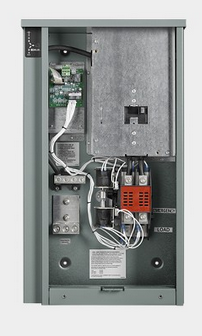

100A Service Entrance Rated Automatic Transfer Switch
Kohler

100A Service Entrance Rated Automatic Transfer Switch

$1,250.00

  • Automatically transfers power to your generator during an outage

Features

  • Designed for use only with KOHLER generators
  • Installs indoors or outdoors.
  • service-entrance model
  • Includes RXT single phase combined interface/load management board.
  • Optional external LED display or optional external LED display with load management.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 100-amp model
  • Volts: 240 V (single-phase).
  • Poles: 2 (single-phase).
View product
12 kW Generator 100ATS Package Quick shop

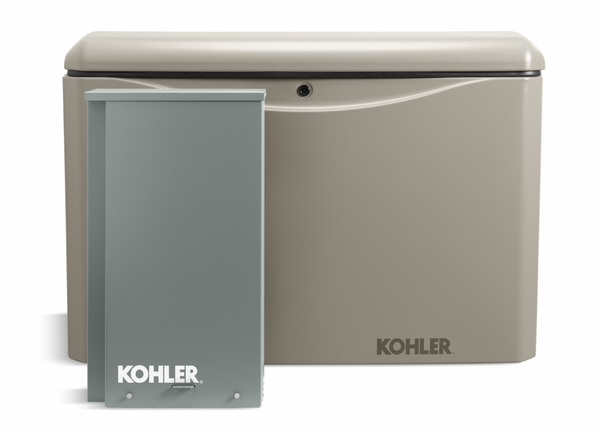

12 kW Generator 100ATS Package
12 kW Generator 100ATS Package
12 kW Generator 100ATS Package
Kohler

12 kW Generator 100ATS Package

$6,293.00

  • Kit Includes: Battery, Warmer, 12KW Unit, 100ATS Service Rated, and a 1 year warranty.
  • COMMISSION NOT INCLUDED but would activate a 5 year warranty.
  • Inside this generator is a commercial-grade engine built to withstand extreme workloads year after year.
  • Powerful.
    In just 10 seconds, your KOHLER generator automatically restores power to your heat or AC as well as appliances and electronics.*
  • Premium warranty.
    We've got you covered with 5-year, 2,000-hour protection and a steel enclosure that's built to last.
  • Flexible.
    Fits both standby and off-grid applications for the ultimate versatility while saving the battery with hibernating controller capability
  • Money Saver.
    No pricey concrete pad needed. Your contractor – and your wallet – will appreciate the built-in mounting pad and easy-to-connect terminal block.

THE POWER YOU NEED

  • PowerBoost™ technology provides the power to start large loads without dropping power to other appliances
  • Extraordinary peak motor-starting capacity to start and run a typical 4 ton air conditioner while still running other home appliances and electronics
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)

THE CONVENIENCES YOU EXPECT

  • ADC-RES Advanced Digital Control designed for today's sophisticated electronics
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Steel enclosure with automotive-grade paint for advanced corrosion protection
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, including built-in base that eliminates need for concrete mounting pad and simple terminal block for easy field connections
  • Automatically transfers power to your generator during an outage

Features

  • Designed for use only with KOHLER generators equipped with RDC2 or DC2 controls.
  • Installs indoors or outdoors.
  • Available in service-entrance models.
  • Includes RXT single phase combined interface/load management board.
  • Optional external LED display or optional external LED display with load management.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 100-amp models available
  • Volts: 240 V (single-phase).
  • Poles: 2 (single-phase).
View product
14 kW Generator 100ATS Package Quick shop
14 kW Generator 100ATS Package
14 kW Generator 100ATS Package
14 kW Generator 100ATS Package
Kohler

14 kW Generator 100ATS Package

$7,473.00

  • Kit Includes, Battery, Warmer, 14KW Unit, 100ATS Service Rated, and a 1 Year Warranty
  • COMMISSION NOT INCLUDED but would activate a 5 year warranty.
  • Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
  • Powerful.
    In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*
  • Premium warranty.
    We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.
  • Award winner.
    KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.

THE POWER YOU NEED

  • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Extraordinary peak motor-starting capacity: 14RESA at 35kVA at 240V
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
  • Compatible with optional OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
  • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

THE CONVENIENCES YOU EXPECT

  • RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Stylish corrosion-proof enclosure impact tested to -30°F
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
  • Model 14RESA approved for off-grid applications with 18-month/1000-hour off-grid warranty
  • Automatically transfers power to your generator during an outage

Features

  • Designed for use only with KOHLER generators equipped with RDC2 or DC2 controls.
  • Installs indoors or outdoors.
  • Available in service-entrance models.
  • Includes RXT single phase combined interface/load management board.
  • Optional external LED display or optional external LED display with load management.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 100-amp models available
  • Volts: 240 V (single-phase).
  • Poles: 2 (single-phase).
View product
200A Service Entrance Rated Automatic Transfer Switch Quick shop

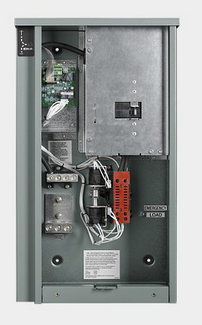

200A Service Entrance Rated Automatic Transfer Switch
Kohler

200A Service Entrance Rated Automatic Transfer Switch

$1,700.00

  • Automatically transfers power to your generator during an outage

Features

  • Designed for use only with KOHLER generators
  • Installs indoors or outdoors.
  • service-entrance model
  • Includes RXT single phase combined interface/load management board.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 200-amp models available
  • Volts: 240 V (single-phase).
  • Poles: 2 (single-phase).
View product
20kW Generator c/w 200ATS Package Quick shop
20kW Generator c/w 200ATS Package
20kW Generator c/w 200ATS Package
20kW Generator c/w 200ATS Package
Kohler

20kW Generator c/w 200ATS Package

$10,500.00

  • Kit Includes, Battery, Warmer, 20KW Unit, 200ATS Service Rated and 1 Year Warranty.
  • COMMISSION NOT INCLUDED but would activate a 5 year warranty & Wifi monitoring (add $400 GTA area)
  • Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
  • Powerful.
    In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*
  • Premium warranty.
    We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.
  • Award winner.
    KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.

THE POWER YOU NEED

  • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Extraordinary peak motor-starting capacity: 20RESC at 41kVA at 240V
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
  • Compatible with optional OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
  • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

THE CONVENIENCES YOU EXPECT

  • RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Stylish corrosion-proof enclosure impact tested to -30°F
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
  • Automatically transfers power to your generator during an outage

Features

  • Designed for use only with KOHLER generators equipped with RDC2 or DC2 controls.
  • Installs indoors or outdoors.
  • Available in service-entrance models.
  • Includes RXT single phase combined interface/load management board.
  • Optional external LED display or optional external LED display with load management.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 200-amp models available
  • Volts: 240 V (single-phase).
  • Poles: 2 (single-phase).
View product
400A Service Entrance Rated Automatic Transfer Switch Quick shop

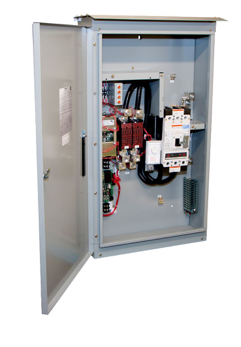

400A Service Entrance Rated Automatic Transfer Switch
Kohler

400A Service Entrance Rated Automatic Transfer Switch

$4,700.00

 Kohler is pleased to announce the release of an expanded offering in our service entrance rated residential transfer switches for our Standby Generators! These NEW products add to Kohler comprehensive line of residential transfer switches.  With the electrical contractor and homeowner in mind, Kohler has designed and manufactured an ALL IN ONE solution to meet CEC requirements for complete home Standby Generator backup.

Introducing the industry first 400 amp service entrance rated automatic transfer switch, featuring LED position indicators. Advance load management, and engine start options.

View product
