CPM260 Panel Package

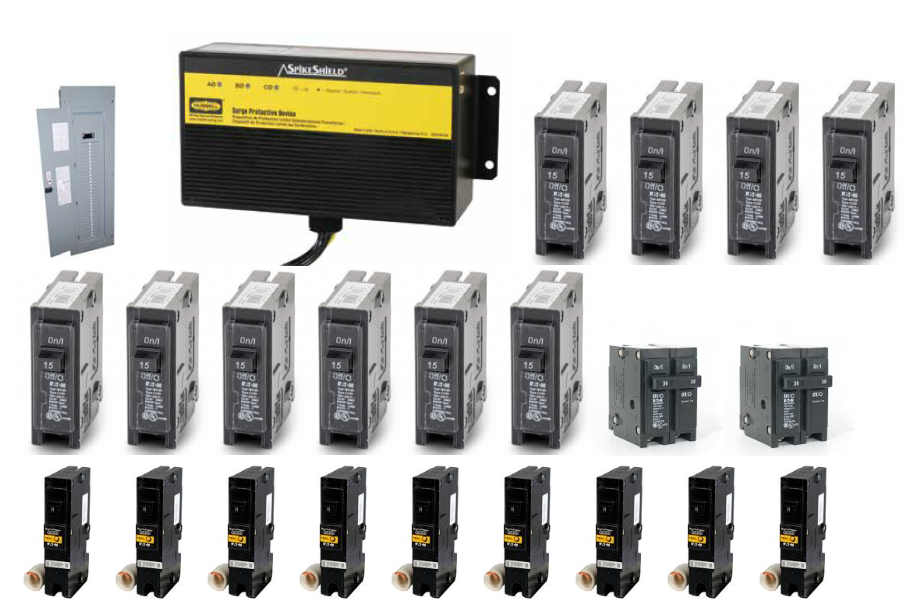

This package features a 200 amp, 60 circuit Eaton panel with 20 breakers (10-BR115, 3-BR215, 1-BR240, 1-BR230) 9- Arc Faults and 1- 200kA surge protector.

Despite the following statistics, surge protection is one of the most overlooked safeguards....when installing a panel for your home or office.

An estimated $250 to $500 million dollars refrigerators with touchscreens, computerized per year is lost from property damage caused washers, dryers, ranges and HVAC equipment, yet by severe weather, lightning, electrostatic discharge, let them operate largely unprotected from surge. switching of inductive or capacitive loads and
internal/external switching transients.*

  • Approximately 60 to 80% of all transient voltage surges are generated from inside a home or building; Only 35% of transient voltage surges stem from
    an outside source.**

  • Analysts estimate U.S. consumers spend billions annually on “smart” home appliances,

• 84% of homeowners feel power strips provide adequate protection for computers, HD TVs and other electronic components. Only 20% of these same homeowners understand that these strips degrade over time, rendering them inadequate for surge protection.***

The wired-in surge protection device brick design is ideal for areas where space is a major consideration. The surge unit can be mounted directly to the panel through a chase nipple connection which will reduce lead length and impedance while increasing protection levels.

The 100kA product features a NEMA 4X housing and a 200kA SCCR rating. The SpikeShield wired-in surge protective devices are UL1449 4th edition listed.

• 100,000 Peak Amperage Capacity

• Can be mounted directly to the panel through a chase nipple connection to reduce lead length and impedance.

Max. Surge Current per Phase: 100kA

Max. Operating Temperature: -40ºF to 140ºF (-40ºC to 60ºC)

Diagnostics Indicators: Green Status LED’s, Audible Alarm, Dry Contacts

Dimensions: 9.9"W x 4.8"H x 3.1"D

Weight: 4.78 lbs.

Terminal Accommodation: #10 AWG 18.0" Wire Leads

Frequency: 50/60 Hz

EMI/RFI: Up to -30dB

Housing Rating: Type 4X

Listing: cULus UL 1449 4th edition type 2 SPD, UL1283 (Wye prod. only), CSA C22.2 NO. 8-M1986
