LSXR10

912401453203

No stock

10 weeks

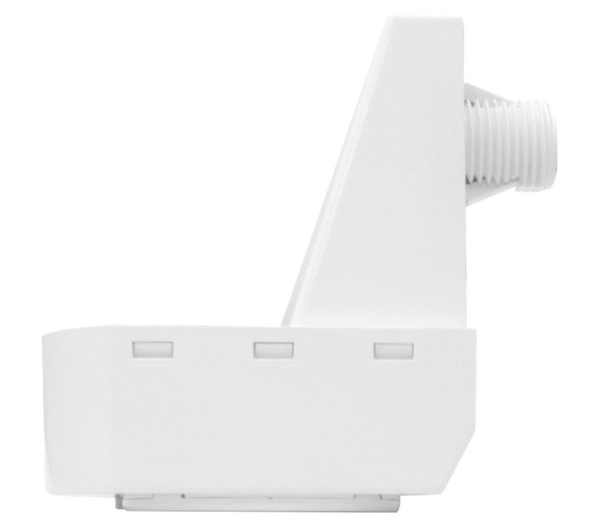

The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR Family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements. All LSXR Family sensors utilize 100% digital Passive Infrared (PIR) detection and power from / switch line voltage. Available options include dual relays, HVOLT powering, and an integrated switching / dimming photocell.
Features:

• Four interchangeable lenses: high mount 360º; low mount 360º; high mount aisleway; and small motion 360º
• Integrated mounting bracket drops lens down 3” from chase nipple (no bracket accessory required)
• 100% digital PIR detection - provides excellent RF immunity
• No PIR field calibration or sensitivity adjustments required
• Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
• Powers from single or two-phase line connections
• Reversible hot and load wires - eliminates backwards wiring
• Photocell and 0-10 VDC dimming options
• Digital push-button programming (no tools or analog adjustments required)
