HEALTHY LIGHTING- SAY NO TO BLUE LIGHT

A serious step forward in High Definition lighting featuring Soft Glow technology for softer and more natural dimming.  AS FEATURED ON CITYLINE

Specs:

The official replacement to the traditional 4" Recessed housings

Brighter 1100 Lumen package

3K Soft Glow Technology (dim from 3000K to 1800K)

4K Soft Glow Technology (dim from 4000K to 3000K)

11 Watts

IC, DAMP, WET, RATED

95 CRI for healthy colors

38 degree optics

COB LED

Insulated & Airtight Rated

CUL Approved

ELV dimming (down to 10%) or TRIAC Dimming (down to 25%)

White Finish

30 degree adjustability with 360 degree rotation

HEALTHY LIGHTING- SAY NO TO BLUE LIGHT

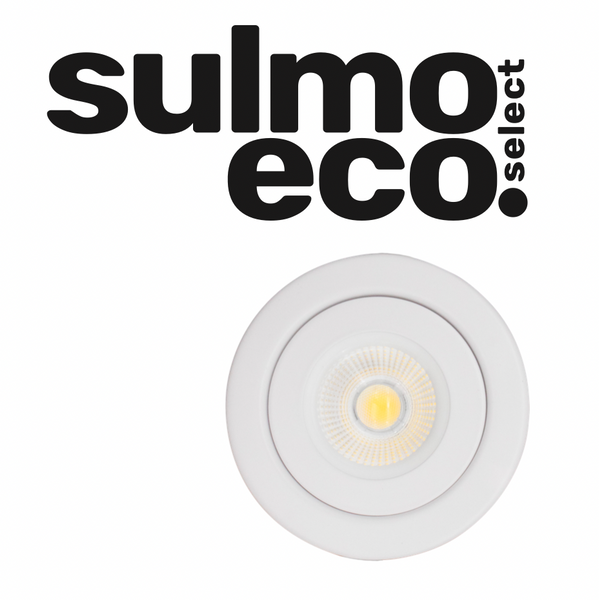

Sulmo directional LED recessed lighting fixtures take recessed lighting to the next level!   With 360° adjustability provides ample light control, while utilizing Ovid's High Color Rendering for near perfect color. Areas for residential such as kitchens and closets will be vibrant in color.   Further Soft Glow creates the ultimate dimming experience, creating a warming effect.  As FEATURED ON CIYTLINE

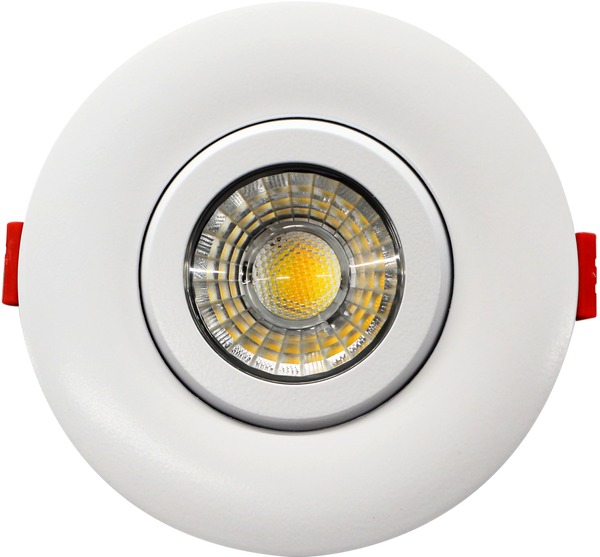

Introducing the Sulmo a unique design, packed with Ovid's high colour rendering technology in a gimbal design with 30 degree tilt and 360 degree rotation. Air-Tight without housing needed and fits where no other recessed fixture can.

Recessed 3" gimbal round LED with integral driver in connection box.

Features

Ideal for soffit lighting, as these are damp rated!

Industry leading 95 CRI for near perfect color rendering technology

Soft Glow Dims from (model 3K) 3000K -1800K & (model 4K) 4000K -3000K

Directional beam - great for sloped ceilings and not only highlighting artwork, but down so with vividly stunning colours

Driver inside connection box - no junction box needed

600 Lumens

Fast & easy to install - save on labour

Type IC rated - no housing required

1 3/4" Thin - Install Where Ceiling Space Is Limited.

Paint: oil based spray painted - scratch resistant and smooth finish.

Quality

Every single driver is powered for a minimum of 24 hours together with the fixture that it is shipped with.

Every LED is visually checked before and after the PCB is mounted on the fixture.  Strict binning to ensure consistent light colour.

Dimming

100%-10% unique healthy warm dimming.This fixture is compatible with industry standard ELV dimmers.

Contractor Economy Brands.

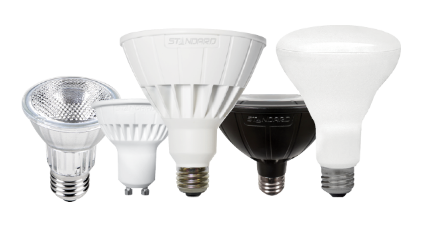

Allowing you to focus light where it matters, our LED reflectors will not let your colors fade. Choose from many sizes, color temperatures and beam distributions to create the perfect lighting with consistent lamp to lamp color.

The LED filament lamps distinguish themselves by their sparkling white light, blending perfectly with crystal chandeliers and modern style fixtures as well as more vintage looks. The LED filament victorian style lamps have an amber coating which provides a warm light that resembles the ambiance created by incandescent lamps.

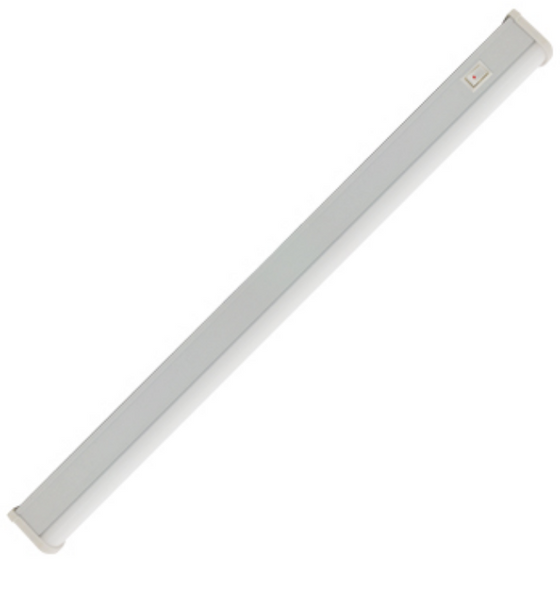

LED Fluobar light is a economical integrated LED strip for undercabinet lighting.

120V hardwire box and cord required for every power connection point in addition to the strips.

Please note while slims are cost effective these are high in glare and carry blue light.  If looking for a healthy alternative please check out the Ovid lighting line with 95 CRI for no blue light and no glare ideal for families with kids under 12 for eye health or those prone to migraines.

Lithonia LED flat downlight provides an cost effective, easy and quick downlight solution without the traditional frame and reflector.  Perfect for installation in existing showers and closets to low ceiling basements applications with the benefits of energy saving LED technology.

4" design with an impressive 700 lumens and 90CRI for true healthy color rendering. Round version now with selectable 3000K,4000K and 5000K and matte white finish. Square version are 3000K only with semi baffle design.

Features

1. Flange: aluminum, painted white.

2. Lens: diffuser is used for smooth and diffused light pattern.

3. Junction Box: steel, 4 7⁄8" x 1 1⁄4" x 4 1⁄8" Clip attached on the side of the J-box to connect with fixture or new construction plate to meet NEC (National Electric Code). J-box also has key holes on the side for mounting on joist

4. Connector: locking power connection is used to connect J-box and fixture. Standard length of the connection is 16" (400mm).

5. Ceiling cutout: installation template on adhesive backed label is supplied with the product.  4" round: 4 3⁄16" (106mm) diameter.

6. Gasket: foam gasket supplied with fixture.

7. Please note not ideal for soffits, as the lights shines out not down.  Ideal for basements and showers.

HEALTHY LIGHTING- SAY NO TO BLUE LIGHT

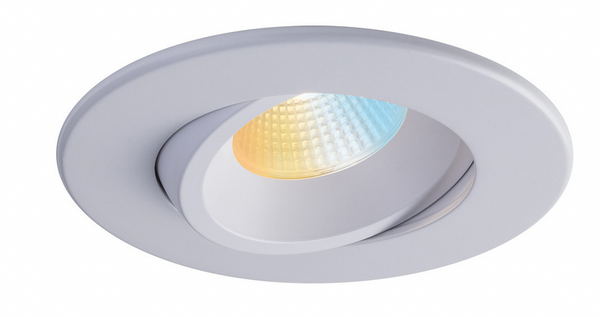

Sulmo Ray- The evolution of recessed lighting- As FEATURED ON CIYTLINE

Key Features:

1100 lumens

95 CRI

Regressed 3 1/2" LED with integral driver in connection box included.

Soft Glow technology creates an exciting experience for dimming LED, from functional light to warm and relaxation light.  3000K dims down to 1800K while the 4000K version dims down to 3000K allowing Kelvin temp changes.

Shallow 3" depth is great for limited ceiling spaces.

IC & airtight

95 CRI- true color rendering, while removing harmful blues typically found in LED lighting, with natural high reds (R9)

Interchangeable optics from 60 and 35 degrees for perfect lighting scenes.

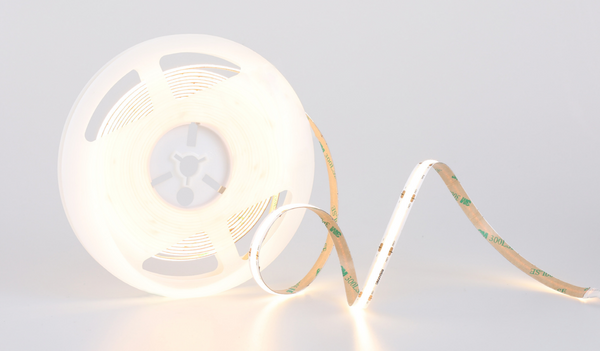

Tape

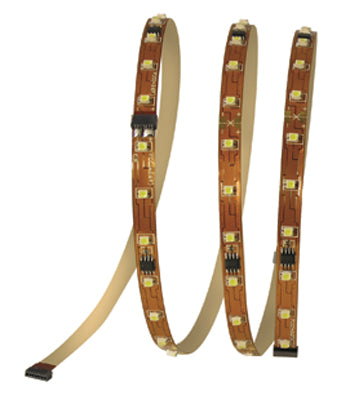

LED-TP1-12 is an indoor 12" (305mm) LED tape light. It provides ample illumination for effective residential, retail and light commercial displays. LED-TP1-12 is ideal for decoration of ceilings, wall or contour marking, backlit signs, under-cabinet, in-cabinet, toe kicks, and task lighting. It can be linked for continuous uninterrupted lighting. For indoor use only (dry location).  Low wattage ensure long lasting stick.

Low Voltage Splice Kit

LED-TP-BL-EL Flexible LED tape extension leads, for use with single colour LED indoor tape light, 24V connecting tape to low voltage wire for multiple new connection points.

40W Driver provides up to 30' runs (requires MAPRO non wifi or ELV+ caseta wifi dimmer options)

96W Driver provides up to 30' x 2 parallel runs (requires RRDF6AN dimmer)

The Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24 V- constant voltage loads. This driver provides smooth and continuous dimming down to 0.1% low-end. It is ideal for use with strip lighting in applications such as coves, under or over cabinet lighting and pathway lighting. The driver is UL® Listed with an integrated wiring compartment and can be mounted up to 150 ft (45 m) away from the load.

EXTRUSION

65867 series EXTRUSION / 210 / RECESSED /8' /ALUM /STD 66343 with frosted lens

210 Recessed

Silver 8' length

1 1/32 width

7/16 inches height

Compatible Dimmers

Radio Ra

3-Wire Fluorescent/LED (120–277 V~) RRD-F6AN-DV-WH 6 A Neutral Wire Dimmer for 96W Driver

Caseta ELV+ PD5NE

• Works with Alexa, Google Assistant, and more (Smart Bridge required)

• Compatible with dimmable LED, ELV, MLV, incandescent and halogen bulbs

• Easily replaces existing switch and installs in as little as 15 minutes (neutral wire is required) works on 40W Driver

Maestro PRO LED+

Dimmer Phase-selectable dimmer for LED, ELV, MLV and incandescent lamp loads.

Multi-ferro

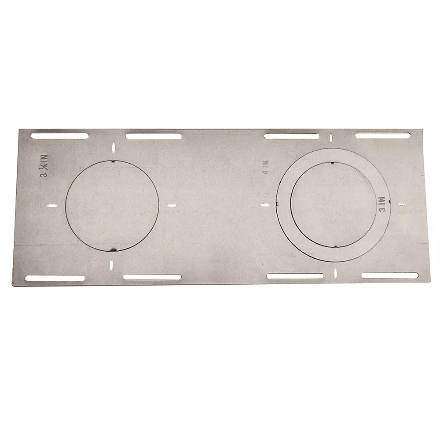

Multi size pre-mounting plate

New Construction premounting plate

• For use with remodel housings
• 4" 3.75" and 2.75" openings

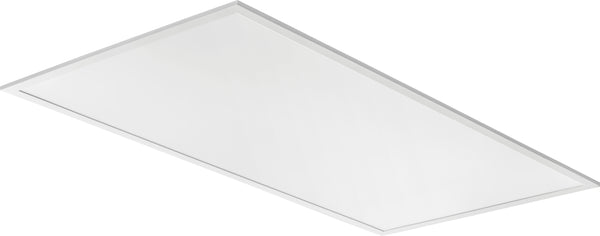

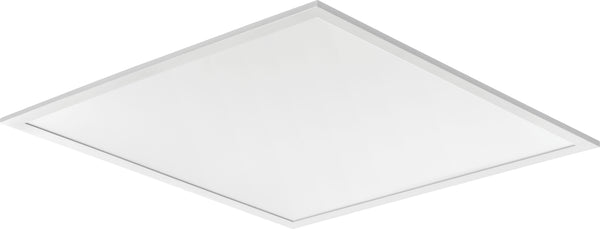

Flat Panel lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.

 Key Features:

• Up to 6,000 lumens
• 120V-347V Auto
• 0-10V Dim
• Selectable Color temperatures 3500K/4000K/5000K
• Available adjustable light output (ALO) for three lumen packages in one fixture
• Available switchable white (SWW) for three color temperature options in one fixture
• Steel housing eliminates sagging or bowing
• High-performance, name brad LEDs provide more than 60,000 hours of reliable illumination

• Includes three  LED puck light fixtures, one 24W low voltage transformer with wiring hub, one 6ft polorized power cord.
• Surface mounted or recessed
• White Kit
• Black and Alum Kit (interchangable)
• 2.2W per Puck
• 90 CRI for high color and high reds, making it great in kitchen applications.
• Tempered glass shield
• Opal Lens for even lighting
• LEDs are cool to the touch; will not discolour or overheat
• 50,000 hour average rated life per LED
• 1 LED per puck; Light output: 145 lumens
• Run up to 5 pucks from the in-line transformer provided in kit (24W max.) using a 5-port wiring hub and/or by daisy chaining (maximum distance between two pucks is 52″)
• Maximum distance from the driver to last puck is 10 m (33′)
• Not for use with dimmer (unless optional dimmable lutron driver is purchased)

• Includes mounting hardware
• Up to 10 Pucks when used with Dim 40W Lutron Driver sold seperate

• 12″ linkable section
• 1.3W per 12″ section
• 18 LEDs per 12″ section
• 45 lumens per 12″ section
• Colour Temperature: Warm White (3000°K ±100°K)
• Linkable up to 30′ (39W) max.  Includes 10'
• Constant current driver every 4″
• Self adhesive backing
• 120° viewing angle
• 24V
• Dimmable (requires Lutron PD-5NE or RRD-PRO or MAPRO dimmer)
• 90 CRI for near perfect colour rendering (perfect for foods such as meats and fruits)

Kit Includes (1) of each:

LED LUTRON Dimmable Driver

Indoor LED class 2 constant voltage driver with hardwire box for use with 24V LED fixtures.

• For use with power feeds equipped with 2.1 DC Jack
• 40W max up to 30' of tape per driver
• Power output: 24V

Splice Kit

• Extend distance between LED tape lights for up to 12′
• Easy wiring - pre-spliced
• 24V
• Perfect for jumping from one end of a ie. stove break and the continuation to the other cabinet
• Connects tape light to low voltage ends

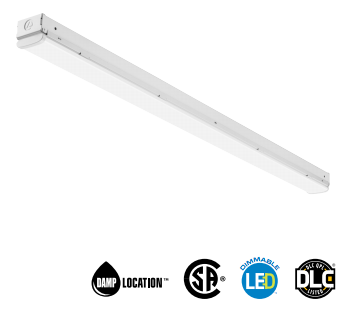

The selectable light-duty, dimmable, damp-location and DLC® listed CSS LED strip light can easily mount individually to a ceiling, horizontal and vertical wall, or by continuous row. The size and versatility makes it suitable for tight spaces, task lighting, restrooms, under/over cabinet and storage closets. FEATURES: ¡ Inspired by classic fluorescent strip channels, this LED fixture offers a traditional appearance that incorporates the latest technology ¡ Quick and simple to install with the snap-lock tool-less channel cover ¡ Features a low-glare diffuse FLAT lens for enhanced aesthetic!

4'

Wattage: 28,36,44

Voltage: 120-277

Color Temp: 35K/40K/50K

Lumens: 3200-5100



8'

Wattage: 55,72,88

Voltage: 120-277

Color Temp: 35K/40K/50K

Lumens: 6500-10,000

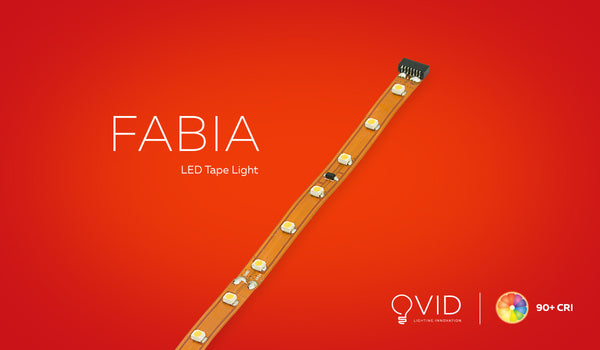

Aluminum extrusion adds a longer lifetime to the tape light series (Fabia) as it increases the dissipation of heat.  It also allows uniform of light without the reflection of dots typically associated with tape light. Designed in 4 foot sections, linkable provides lumens of 416 in the narrow and the wide 4 foot section provides 832 lumens with double tape design.

The unique round closet bar, comes in 6' sections and provides 624 lumens of light.

Aluminum extrusions come complete with parts as per picture.

Please note tape light (Fabia) sold separately.

Controller

Connect Liteline OnCloud fixtures to the OnCloud Room Controller and keep full control even if the Wi-Fi goes down. Control on/off, dimming, white tuning, and toggle between four favorite modes.

Smart Wi-Fi Dimmer

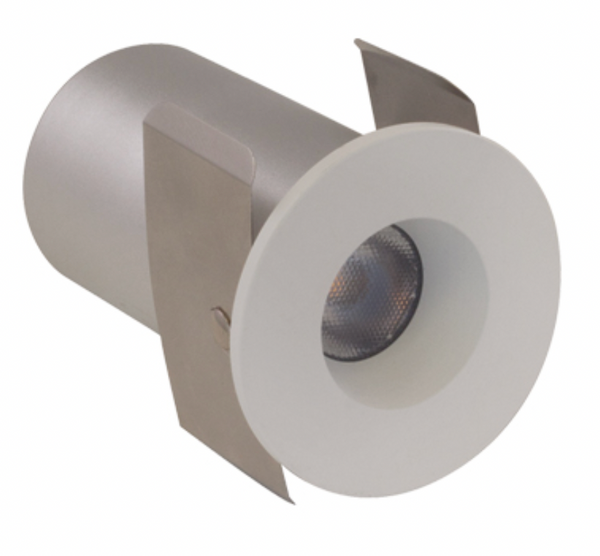

This 3W round LED MicroPot™ recessed pot light provides quality illumination for ambient accent up lighting in hallways, corridors and entrances. Powered by a 24V constant voltage power supply (sold separately). Fixture is IC rated, suitable for indoor use only.  3000K warm white.

Installs in floors.

200 Lumens of light

24V Low Voltage

Dimmable
